Solar Switchboard Upgrade for Ducted Air Con in Chelmer

Project Location: Chelmer
Project Scope: Comprehensive switchboard enhancement
Result: A full single-phase switchboard upgrade supporting a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—with no need for a three-phase upgrade.

Why You Should Choose Precision Electrical & Air for Your Switchboard Upgrade

This homeowner in Chelmer undertook an extensive renovation project, which included the installation of a powerful 17.86kW single-phase solar photovoltaic (PV) system, alongside a 30kWh modular battery storage solution, and comprehensive blackout protection for the entire residence. Additionally, a new ducted air conditioning system was incorporated into the overall renovation plan. Before integrating these advanced systems, it was imperative to assess and enhance the existing switchboard to ensure compliance with the latest standards and effectively manage the enhanced electrical loads introduced by these installations.

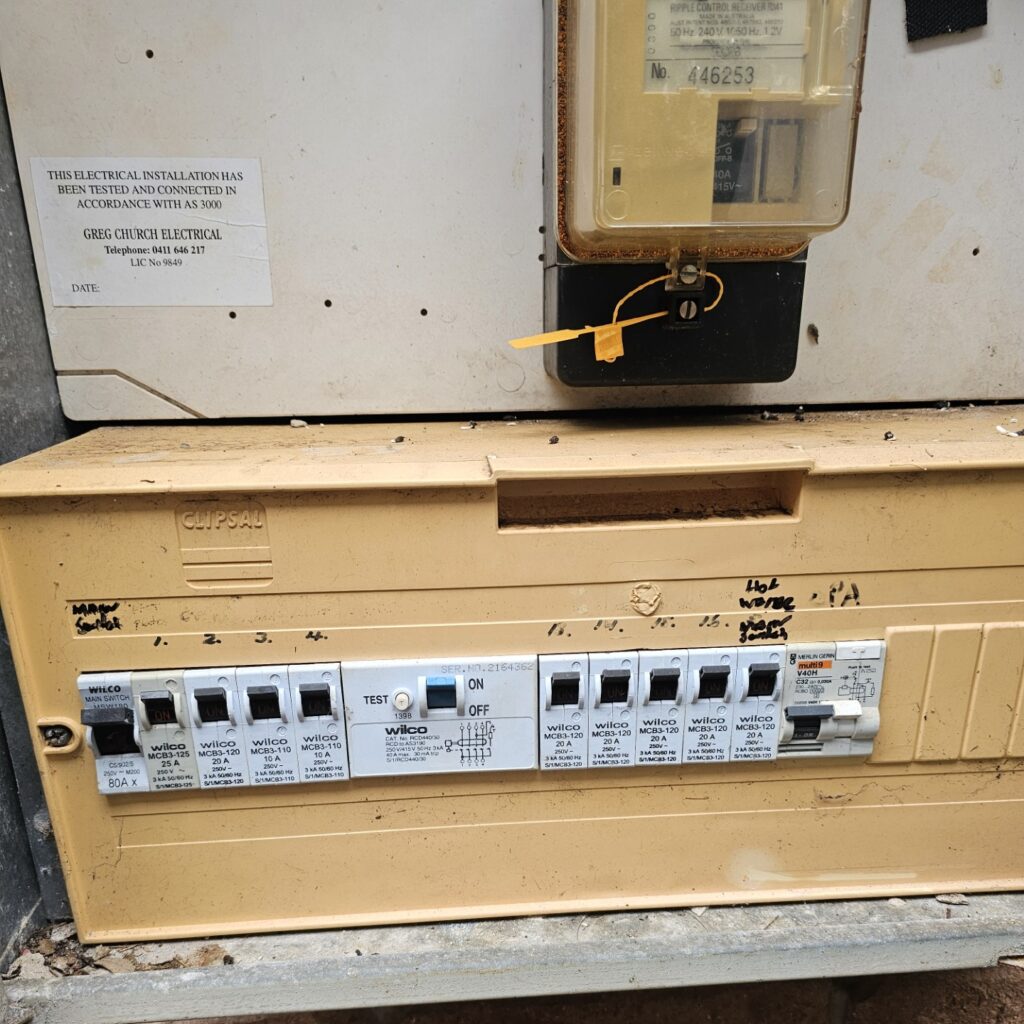

The original switchboard was outdated, featuring antiquated circuit breakers, and a single Residual Current Device (RCD) that offered protection for the entire property. It was inadequate for supporting solar energy integration and battery storage. Furthermore, the circuit labeling was insufficient, making it non-compliant with contemporary standards governing modern energy generation systems. This lack of compliance posed a significant risk to the efficient operation of the newly upgraded systems, potentially jeopardising both safety and functionality.

Is a Three-Phase Upgrade Really Necessary for Your Solar System?

When analysing the specifications of a 17.86kW solar system paired with a 30kWh battery, it is a prevalent misconception that a three-phase upgrade is indispensable. This misunderstanding can result in significant financial burdens for the homeowner, potentially incurring costs ranging from £3,500 to £6,000, in addition to a prolonged wait for approval from Energex for network modifications, thereby delaying the installation process.

Detailed Initial Technical Assessment Conducted to Determine Upgrade Needs

Two critical factors played a significant role in determining whether a three-phase upgrade was indeed necessary. Firstly, the supply cable for the residence was advantageously positioned near the street junction. This optimal location allowed the voltage rise calculation for solar energy export to comfortably remain within Energex's single-phase limit of 2%. Secondly, since the solar and battery systems are specifically engineered to diminish demand on the grid rather than augment it, there was no technical rationale from the network's perspective necessitating a three-phase upgrade. Additionally, the ducted air conditioning system was also found to comply with the essential parameters for efficient single-phase operation.

Consequently, the decision was made to retain the existing single-phase configuration. The switchboard was upgraded to ensure it could safely and competently manage all new electrical loads without compromising safety or adherence to regulatory standards, thus providing peace of mind for the homeowner.

In-Depth Examination of Installed Components Ensures Enhanced Safety and Compliance

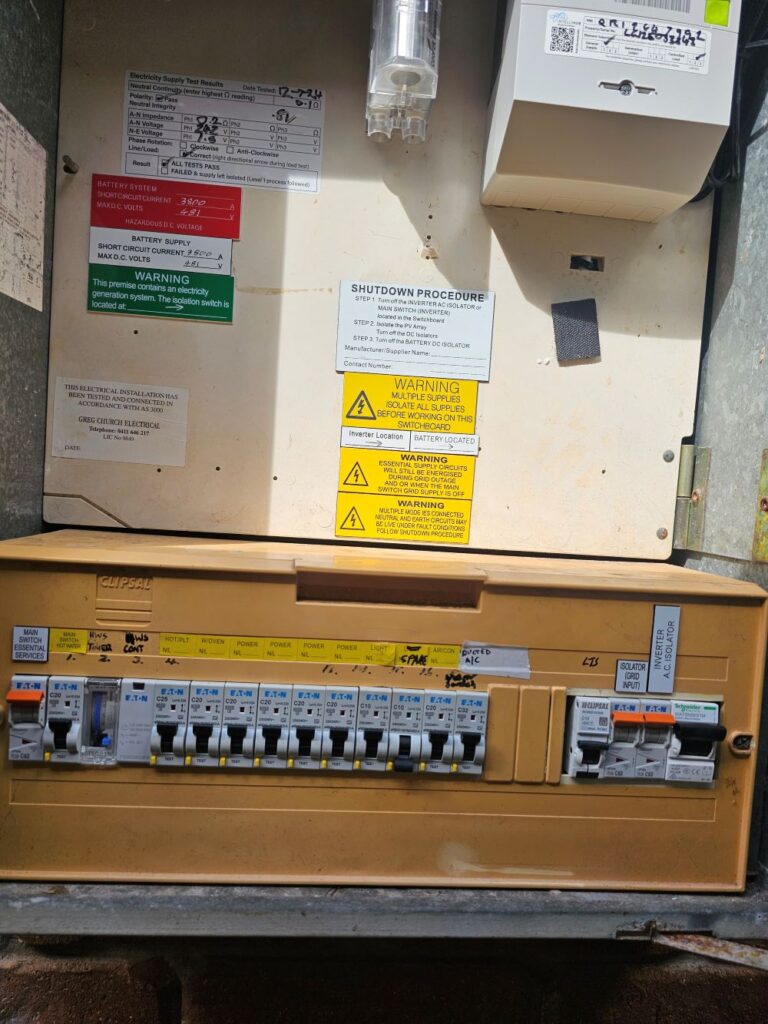

The existing switchboard underwent a comprehensive dismantling and meticulous reconfiguration process. Each circuit breaker was replaced with new, suitably rated units sourced from Eaton, with each breaker carefully labelled for seamless identification. The circuits were distinctly separated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning were allocated dedicated circuits to enhance safety and ensure compliance with current regulations.

A timer was integrated into the hot water service to guarantee its efficient operation during peak solar generation hours. This strategic enhancement significantly reduces reliance on the grid by optimising the solar system's output throughout the day. Additionally, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure proper functionality and efficiency in operation.

The upgraded switchboard was designed for seamless integration with both the solar inverter and the battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, alongside multiple supply warnings and a complete shutdown procedure. All electricity supply tests were successfully conducted and documented for the switchboard, demonstrating its readiness for operation.

The completed switchboard now fully complies with the latest Australian standards, ensuring it is appropriately configured for any future electrical service work required at the property, thereby safeguarding the homeowner’s investment.

Homeowner Reaps Benefits from Successful Upgrade

The homeowner has successfully acquired a fully upgraded and compliant switchboard capable of safely supporting their solar system, 30kWh battery, and ducted air conditioning, all operating efficiently within a single-phase configuration. Most importantly, they avoided unnecessary expenses associated with a three-phase upgrade that was not required based on their specific circumstances, thereby achieving both financial and operational efficiency.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

While three-phase upgrades can indeed be critical in certain scenarios, they are not universally required for every installation. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your situation, allow Precision Electrical & Air to conduct a comprehensive analysis. We will provide you with a clear assessment based on your cable distance, load requirements, and the specific criteria that Energex will utilise to approve your property.

We assure you that no upselling will occur; you will receive an accurate evaluation tailored specifically to your home and its needs.

Your Frequently Asked Questions Addressed by Experts

How do electricians determine the necessity of three-phase power for solar systems?

The assessment relies on two primary factors: voltage rise and load demand. Electricians evaluate the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex permits a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system's export remains within this limit, a single-phase configuration is adequate. However, if the voltage rise exceeds this threshold, three-phase power becomes essential to distribute the export load across three conductors, effectively keeping the voltage rise within acceptable parameters.

Does having a larger solar system automatically necessitate three-phase power?

No, the size of the solar system alone does not dictate the requirement for three-phase power. A 17.86kW solar system can legally and safely operate on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are added to the property. Key considerations include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not solely the kilowatt rating of the solar panels.

What is voltage rise, and why is it crucial for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system sends power back into the grid. The farther your home is from the street junction, the greater the resistance in the cable, resulting in a higher voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same line. Network distributors like Energex enforce strict limits—typically set at 2% for single-phase connections. Electricians must calculate whether your solar system's performance stays within this limit to ascertain whether single-phase or three-phase power is suitable for your property.
