Dedicated Circuits for Heavy Tool Workshop Power Solutions

If you own a shed on a rural property and are contemplating converting it into a fully operational workshop, prioritising the electrical setup is essential. Utilising a MIG welder, air compressor, and table saw on the same circuit as your home can result in severe complications, including frequent circuit trips, flickering lights, and potentially dangerous overload situations that threaten both safety and efficiency.

This detailed guide outlines the key aspects of wiring a dependable workshop in rural regions of the Mid North Coast. We will discuss the significance of dedicated circuits, sub-boards, and the advantages of three-phase power for larger machinery. If your requirements are limited to basic power needs—such as lighting and a few power outlets—please refer to our guide on Shed Wiring on Acreage for a suitable introduction. This article specifically addresses workshops that demand substantial power for intensive tasks.

Recognise the Critical Role of Dedicated Circuits for Your Workshop's Power Needs

Many homes operate multiple power outlets on shared circuits, which is generally adequate for low-power devices like kettles and televisions. Difficulties arise when trying to operate a 32-amp MIG welder and an air compressor simultaneously. Such scenarios can lead to serious issues if not managed properly.

Consider the potential consequences of connecting robust machinery to household circuits:

• Frequent circuit trips — A welder drawing over 30 amps on a 20-amp circuit will trip the breaker immediately or, worse, cause the wiring to overheat before the breaker activates.
• Voltage drops — Extended cable runs from the main board to the shed can result in voltage sag, causing tools to operate at elevated temperatures, perform sluggishly, and deteriorate more rapidly.
• Power interruptions in the home — Your partner may experience a power outage in the kitchen due to the compressor’s startup, often leading to unwelcome discussions.
• Increased fire risks — Overloaded wiring within walls and cable runs is a leading cause of electrical fires in rural areas.

Implementing dedicated circuits can effectively mitigate these issues. Each heavy tool should have its own dedicated circuit, correctly sized for its load, with individual breaker protection. This arrangement ensures that no circuits are shared, thus preventing overload.

Assess the Power Requirements of Common Workshop Equipment

Before your electrician can create an effective circuit layout, it is crucial to understand the power requirements of your equipment. Below is an overview of the typical power consumption for common workshop tools:

• MIG welder — Requires between 15A and 32A, depending on the model. Larger 240V welders typically operate at the upper end. Three-phase units will have different requirements (more on that later).
• Air compressor — Consumes around 10A to 15A. The startup surge can be substantial—compressor motors often draw three to four times their running current for a few seconds upon starting.
• Table saw — Generally uses between 10A and 15A for a quality cabinet saw. Less expensive contractor saws may consume less power, but you are likely not looking for budget options.
• Lathe (wood or metal) — Similar to table saws, these typically require between 10A and 15A, with metal lathes generally on the higher end.
• Dust extractor — Approximately 10A for a single-phase unit. It must operate continuously while using other tools, meaning it should be on its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, necessitating a dedicated circuit.

When you total the power consumption, it becomes clear that a single 20-amp circuit from the house will not suffice. A well-equipped workshop can easily require 80 to 100+ amps across all circuits when operating at full capacity, underscoring the need for a comprehensive electrical plan.

Choose the Appropriate Circuit Breaker Size and Include RCD Protection

Every circuit in your workshop needs a breaker that corresponds with the cable size and anticipated load. Your electrician will calculate this based on your equipment, but as a general guideline, consider the following:

• 15A or 20A circuits — Suitable for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Necessary for welders, plasma cutters, and other heavy single-phase machinery requiring substantial power.
• Three-phase breakers — These should be sized according to specific equipment requirements (details below).

RCD protection is vital. In accordance with AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must include RCD (safety switch) protection. This legal requirement is designed to protect against the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture increase the likelihood of earth faults. RCDs promptly cut power if there is a current leak to earth, which can mean the difference between a minor shock and serious injury.

Typically, your electrician will implement a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that integrate both functionalities. RCBOs are particularly beneficial in workshops because a fault in one circuit does not disrupt power to others, resulting in a more reliable electrical system.

Install a Dedicated Sub-Board to Satisfy Your Workshop's Electrical Needs

Instead of routing multiple individual cables back to the main switchboard, installing a dedicated sub-board in your workshop provides a more efficient solution. Here are the advantages:

• Shorter cable runs — A single heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This configuration reduces voltage drop and decreases cable costs.
• Streamlined fault diagnosis — Each circuit is clearly labelled and easily accessible within the workshop. If a breaker trips, you won’t need to return to the house to reset it, enhancing efficiency.
• Future expansion — A properly sized sub-board allows for the addition of more circuits in the future, making it easy to incorporate new tools later.
• Isolation capability — You can turn off all workshop power from a single main switch without affecting the house's electricity, which is a crucial safety feature.

If your house switchboard is outdated or running at full capacity, an upgrade may be necessary to effectively support the workshop sub-board. Older ceramic fuse boards are unlikely to handle the increased load safely.

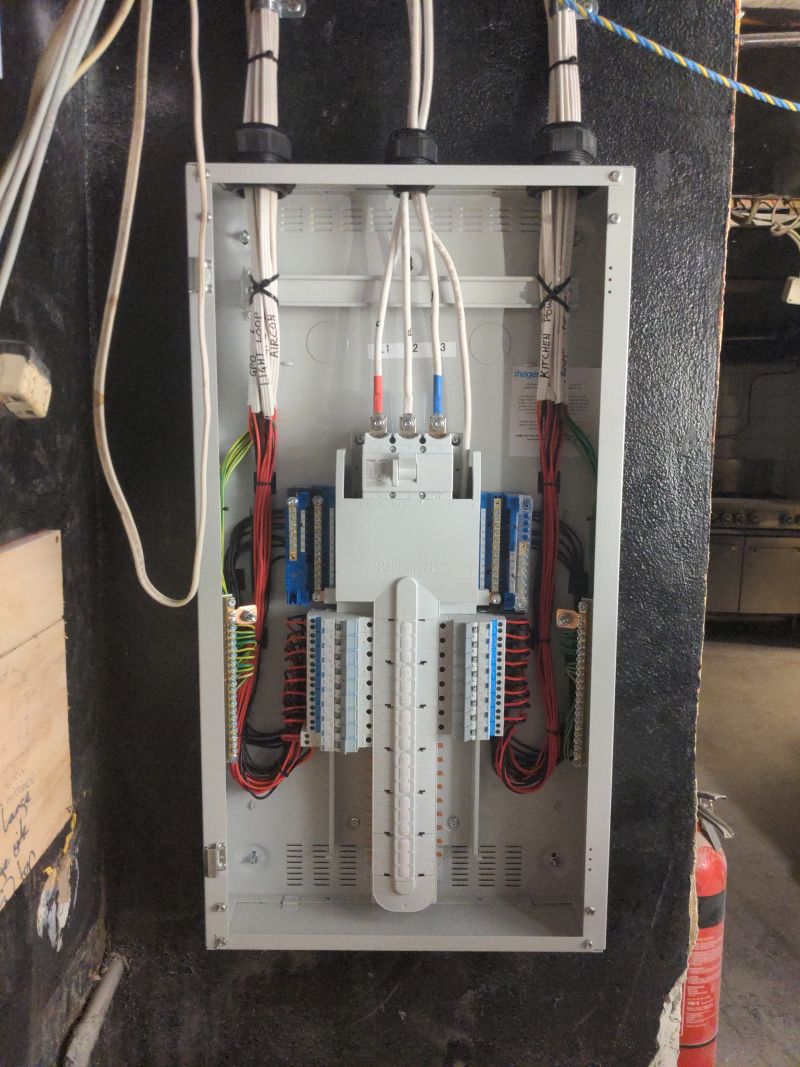

A typical workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus a buffer for future additions to ensure long-term efficiency.

Create a Comprehensive Lighting Plan for Your Workshop

Sufficient lighting is essential for safety in your workshop. Clear visibility is crucial, especially when working with sharp blades and hot materials. Consider the following key lighting aspects:

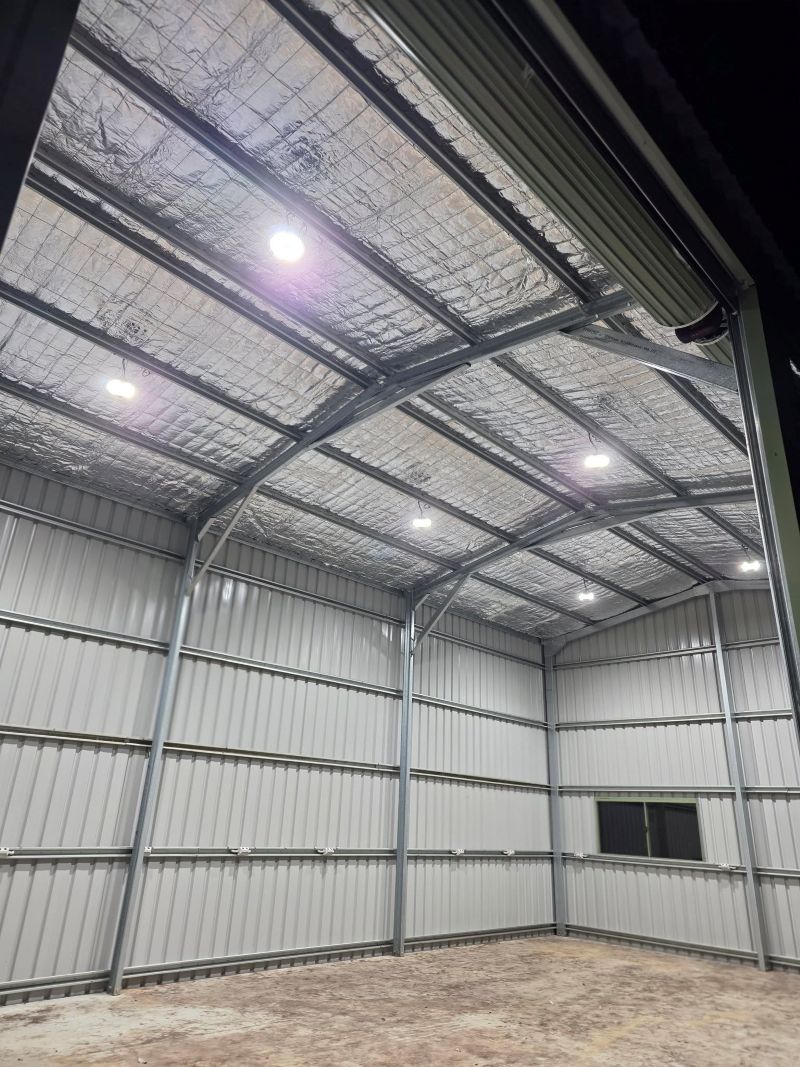

• High-lumen LED battens — LED panels or battens provide bright, even illumination across the space. Aim for a minimum of 500 lux at bench height to guarantee visibility.
• Dust-proof fittings — Standard lights can become obstructed with sawdust and metal shavings. Opt for IP-rated fittings that resist dust and moisture for durability and safety.
• Task lighting at workstations — While overhead lighting provides general coverage, focused lighting at the workbench, lathe, and drill press is essential for precision work, boosting productivity and safety.
• Separate lighting circuit — Lighting should operate on its own circuit, ensuring you still have illumination if a power circuit trips. Being left in the dark next to a running table saw poses a significant safety risk.

Our extensive experience with lighting layouts in commercial spaces enables us to assist you in creating a workshop lighting plan that significantly enhances your working environment while adhering to safety standards.

Plan for Effective Ventilation and Dust Extraction Systems

When engaged in woodworking or welding, ensuring proper ventilation is just as crucial as having sufficient electrical power. Dust extraction systems and exhaust fans require dedicated circuits due to several important considerations:

• Continuous operation — Your dust extractor must run whenever you are cutting. It cannot share a circuit with the tool it serves, as this would compromise safety and efficiency.
• Motor startup loads — Dust extraction fans and collectors can experience significant startup surges, similar to compressors, necessitating dedicated circuits.
• Interlocked switching — In a well-designed workshop, the dust extractor can be wired to activate automatically when specific tools are powered on. This requires careful circuit design and planning.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation to ensure proper airflow. If you are using a cyclone-style dust collection system, it may require a 20A circuit based on motor specifications.

Explore the Benefits of Three-Phase Power for Heavy Equipment Use

When undertaking intensive metalwork or operating large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may reach its limits. Three-phase power provides several distinct advantages:

• Increased power capacity — Three-phase motors are more efficient and deliver greater power without the excessive startup surges commonly associated with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically operate on three-phase power, ensuring optimal performance.
• Smoother operation — Three-phase motors operate more smoothly and run cooler, extending the lifespan of your tools and enhancing overall efficiency.

Accessing three-phase power in rural areas of the Mid North Coast depends on its availability at the street level. Some properties may already have a three-phase supply, while others might require a phase converter or a new connection from Essential Energy.
For further information, refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is available, your workshop will need the installation of a three-phase switchboard equipped with appropriately rated breakers and an effective earthing system to ensure safety and compliance.

Protect Your Equipment with Surge Protection Devices

Tools featuring electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are particularly vulnerable to voltage spikes. Your workshop generates surges every time a large motor starts or stops. Coupled with the voltage instabilities commonly found in rural power lines, your equipment faces considerable risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they affect your tools. This is a cost-effective measure compared to the expense of replacing the electronic components of a $3,000 welder or CNC controller.

If your property is susceptible to storms—which is frequent in the Mid North Coast—we recommend adding surge protection at the main switchboard to guard against lightning-induced surges that could damage your equipment.

For properties reliant on a generator for backup power, incorporating a generator changeover switch ensures smooth transitions between mains power and generator supply without risking back-feeding or damaging connected equipment.

Consider Additional Features for Your Workshop Setup

Here are several additional features to integrate into your workshop wiring from the beginning:

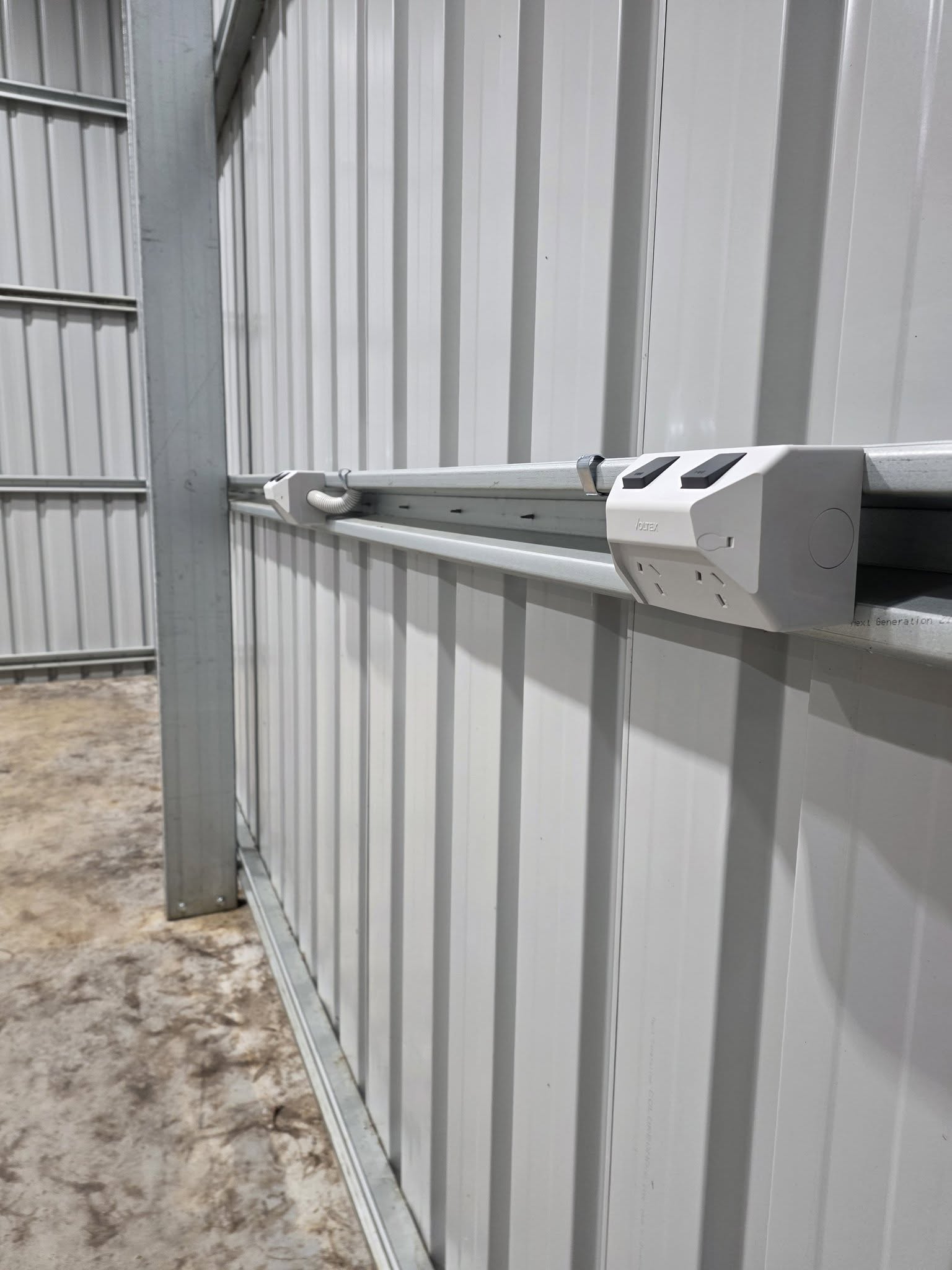

• Ample power points — Install more power points and switches than you think you will need. Use weatherproof GPOs if the workshop is open-sided. Consider double power points at every bench and outlets conveniently located near key machinery.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring concurrently with the electrical setup. It is significantly easier to run cables during the initial fit-out than after the walls are completed.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, particularly in rural areas that lack sufficient street lighting.
• EV or equipment charging — If you are using electric equipment (such as battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets.

Estimate the Financial Outlay for Your Workshop Electrical Setup

Cost estimates will vary based on the size of the workshop, the number of circuits needed, and whether three-phase power is necessary. As a rough guideline for the Mid North Coast, consider the following:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000
• Comprehensive dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from $10,000
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or the necessity for upgrades from Essential Energy will increase overall costs. We provide transparent quotes tailored to your specific workshop and equipment needs—there are no hidden fees involved.

Important Reminder: All Electrical Work Must Be Conducted by Licensed Professionals

This is a crucial point to stress. In New South Wales, all electrical wiring work must be performed by a licensed electrician. This includes the installation of new circuits, sub-boards, power points, and the connection of equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C and operates throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and lead to substantial fines. If someone offers to perform the work cheaply without a licence, it is not a saving—it is a risk that could have serious consequences.

Your Most Common Questions Answered

Can I Use My Welder from a Standard Power Point?

Small stick welders (up to around 140A output) can indeed be used with a standard 10A or 15A power point. Any larger units necessitate a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately or potentially cause the wiring to overheat if the breaker is faulty. If you are welding regularly, it is crucial to have a dedicated 32A circuit installed for safety and efficiency.

How Many Circuits Are Typically Required in a Workshop?

The number of circuits required will depend on your tools, but a well-equipped workshop generally requires a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, and a couple of spares for future additions. We tailor the design based on your specific equipment list to ensure optimal functionality.

Is Three-Phase Power Essential for a Home Workshop?

Not necessarily. Most home workshops function adequately on single-phase power with dedicated circuits. Three-phase power is only required if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Refer to our complete guide on Do I Need Three-Phase Power on My Property? to determine if it aligns with your needs and operations.

Can My Existing Switchboard Support a Workshop?

It is possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. If it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. Our team will evaluate this during the quoting process to ensure your workshop is adequately powered.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can typically be completed within 1 to 2 days. A full fit-out encompassing multiple heavy circuits, three-phase power, and comprehensive lighting usually takes 3 to 5 days, depending on the complexity and distances for cable runs. We will provide a timeline along with your quote to keep you informed throughout the process.

Ensure Your Workshop Is Properly Wired for Optimal Efficiency

If you are establishing a workshop on your property and wish to ensure it is done correctly from the beginning, get in touch with us. We will visit your site, evaluate your space and equipment list, and develop a tailored plan that meets your power requirements without compromising safety or quality.

Contact Hack-It Electrical Solutions at 0402 079 803 or reach out to us online to arrange a quote for your project.
